SMD Assembly Machine or Pick and Place Machine
Extremely easy machine programming and file input from PROTEL software and various electronic design software
Easy operator-machine interface (one-day training)
1. Greater accuracy: The SMD component assembly machine has very high accuracy, which allows SMD components to be installed accurately and without errors on LED PCBs.
2. High production speed: Using the SMD component assembly machine, the production speed of LEDs is significantly increased.
3. Cost reduction: Using the SMD component assembly machine, production costs are reduced and production accuracy is higher.
4. Mass production capability: Using the SMD component assembly machine, the mass production capability of LEDs is significantly increased, which results in reduced production costs.
5. Reduction of production errors: Using an SMD component assembly machine reduces production errors and increases production accuracy.
SMD Assembly Machine or Pick and Place Machine
User-Friendly Software
The SMD assembly machine features highly user-friendly software with intuitive access controls and customizable permissions. Regular users, even without specialized knowledge, can easily manage the machine using this software.
For high-volume component assembly, automated methods are highly recommended. With advancements in science and technology, the capabilities of these machines are continuously improving.
The head system in the SMD assembly machine, with its 360-degree rotation, accommodates a wide range of components at various angles, ensuring high precision and efficiency.
Adjustable PCB Positioning
The PCB (Printed Circuit Board) positioning in the SMD assembly machine or Pick and Place machine is fully adjustable. Even if the PCB sheets differ in design, cuts, or dimensions, the machine’s advanced camera ensures precise adjustments without requiring manual recalibration.
In advanced versions, PCB sheets can automatically move along conveyor rails, optimizing the assembly process for higher efficiency.

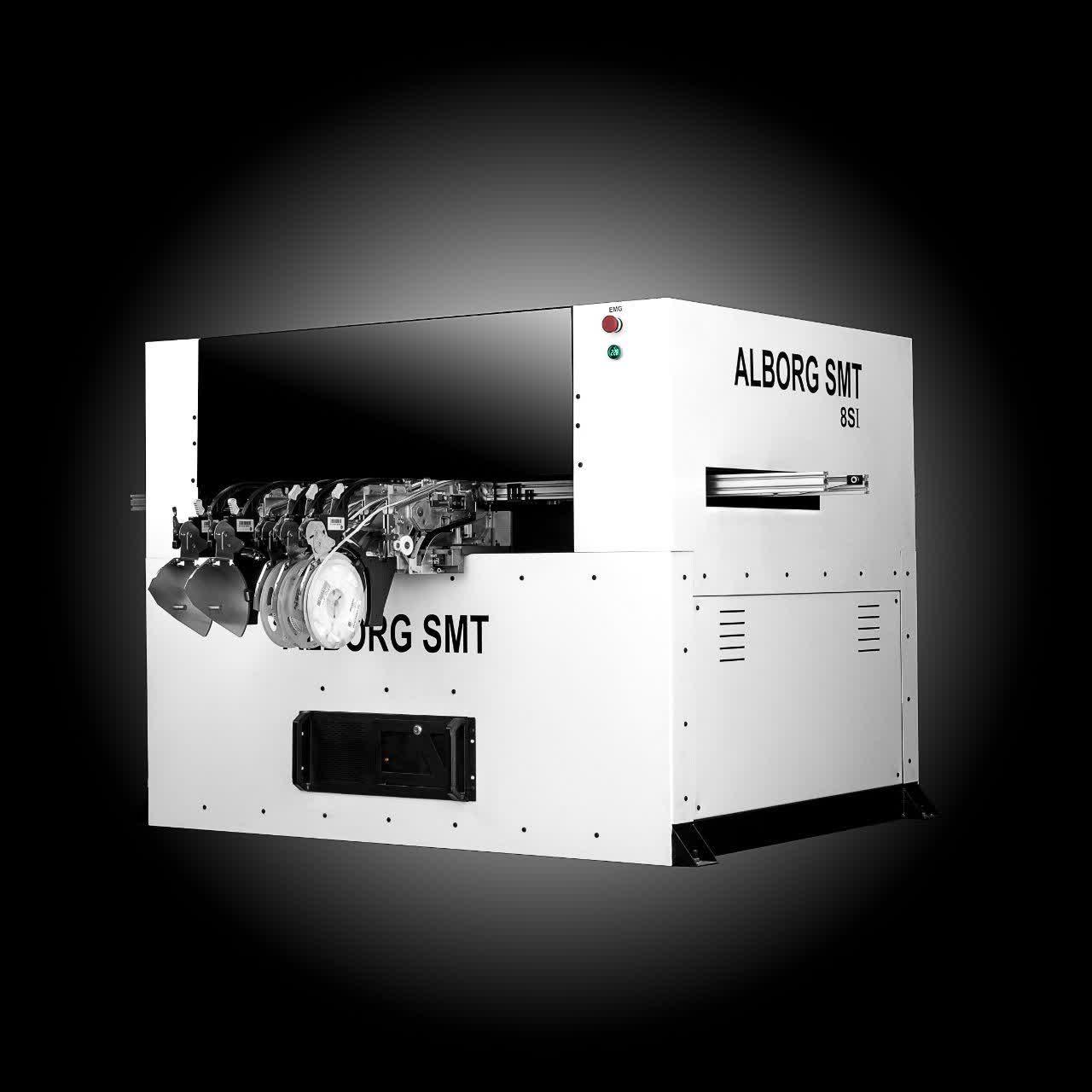

8-Head Industrial SMD Assembly Machine
The 8-head assembly machine is one of the best options for manufacturers seeking high-speed and accurate placement of SMD components. With its industrial-grade design and reliable performance, it is ideal for advanced production lines.
Overview
This model represents the first industrial-grade SMD assembly machine, designed for companies with high production volumes. It is not only cost-effective but also ensures precise and stable component placement, making it a dependable choice.
The machine features a robust mechanical structure and high-level performance, making it a perfect combination of functionality and simplicity. It also includes free installation for added convenience.
Operating System
The 8-head industrial SMD assembly machine supports the Windows 10 operating system. Operators can easily import PCB files through Altium Designer software and perform the initial setup. This process is simple and can be taught in one day by our team.
The machine includes 48 feeder ports compatible with various feeder sizes, such as 8mm, 12mm, 16mm, and 24mm. These feeders are aligned along the front of the machine, enabling smooth and efficient component feeding.
Camera System
The machine is equipped with two upper cameras for component centering and one vision processing camera, ensuring precise placement and exceptional accuracy during the assembly process.
Key Benefits of SMD Assembly Machines
- Higher Precision: Ensures accurate placement of SMD components with minimal errors.
- Increased Production Speed: Significantly boosts the production rate of PCBs.
- Cost Efficiency: Reduces production costs while maintaining high accuracy.
- Mass Production Capability: Allows for large-scale production, further lowering production costs.
- Error Reduction: Minimizes production errors, improving overall quality.
Warranty and Support
One of the standout features of our 8-head industrial SMD assembly machine is our comprehensive support, including:
- 24/7 customer service.
- Online Q&A and troubleshooting support.
- Technical consultation for setup and maintenance.
- Fast and reliable after-sales service to minimize downtime.
This combination of advanced technology, user-friendly features, and dedicated support makes the 8-head industrial SMD assembly machine an excellent choice for professional electronics assembly.
